Bearing Steel Sprag One Way Clutches Freewheel Cage Without Inner Or Outer Races

Name: Bearing Steel Sprag One Way Clutches Freewheel Cage Without Inner Or Outer Races
Brand: MOUETTE
Price: 2 USD

Quality Bearing Steel Sprag One Way Clutches Freewheel Cage Without Inner Or Outer Races for sale

Brand Name : MOUETTE

Model Number : DC2222G, DC2776, DC3034, DC3175(3C), DC3809A, DC4127(3C), DC4445A, DC4972(4C), DC5476A, DC5476A(4C), DC5476B(4C), DC5476C(4C), DC5776A, DC6334B, DC7221(5C), DC7221B, DC7221B(5C), DC7969C(5C), DC8334C, DC8729A, DC10323A(3C), DC12334C, DC12388C(11C)

Certification : ISO/TS 16949:2009, ISO 9001:2008

Place of Origin : China

MOQ : 50

Price : USD2 per Piece

Payment Terms : L/C, T/T, D/A, Western Union, Paypal

Supply Ability : 500,000 Pieces per Month.

Delivery Time : 3-45 working days.(Huge Quantity Stocks Available))

Packaging Details : Plastic bags, Cartons and European Standard Plywood Case.

Name : One Way Sprag Clutches

Material : High-Alloy Bearing Quality Steel

Clutch Type : Sprag Clutch

Clutch Application : Backstopping, Indexing, Overrunning

Inch - Metric : Inch

Basic Construction Type : dual cage retainer assembly without inner or outer races

Lubrication Type : designed for oil lubrication

Bearing Support Required : Yes

Contact Now

Bearing Steel Sprag One Way Clutches Freewheel Cage Without Inner Or Outer Races

Overrunning, Indexing, Backstopping External Bearing Support Required, Sprag Clutches

Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing. The DC type version-N accepts all types of lubricants currently used in the power transmission equipment.

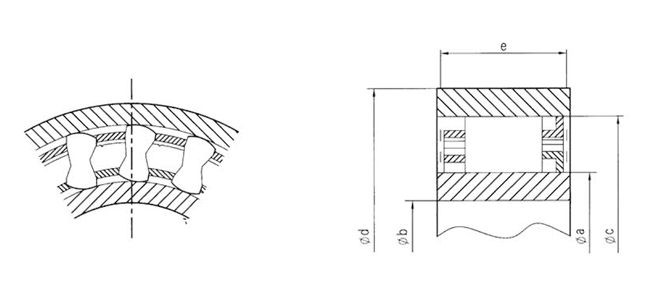

The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width “e*”, without any recess, to ensure the freewheel functions correctly as shown on following pages.

Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below. Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0,6 mm minimum.

Core hardness to be HRC35 to 45.

Sprag Clutches DC type Specifications:

Size	Overrunning speeds			Øa +0.008 - 0,005	Øc ± 0,013	Sprag space	e_min	Ød_min	Øb_max	No.of clips	No.of sprags	Weight
						Sprag space

	TKN1	n_imax	N_amax	mm	mm	mm	mm	mm	mm	pcs	pcs	kg
	Nm	min^-1	min^-1	mm	mm	mm	mm	mm	mm	pcs	pcs	kg
DC2222G	63	8600	4300	22.225	38.885	8.33	10	50	15	-	12	0.03
DC2776	119	6900	3400	27.762	44.422	8.33	14	58	18	-	14	0.055
DC3034	124	6300	3100	30.340	47.000	8.33	14	62	20	-	14	0.06
DC3175(3C)	159	6000	3000	31.750	48.410	8.33	14	63	24	3	16	0.06
DC3809A	275	5000	2500	38.092	54.752	8.33	16	71	29	-	18	0.085
DC4127(3C)	224	4600	2300	41.275	57.935	8.33	14	75	32	3	18	0.09
DC4445A	363	4300	2100	44.450	61.110	8.33	16	79	34	-	20	0.095
DC4972(4C)	306	3800	1900	49.721	66.381	8.33	14	86	38	4	22	0.1
DC5476A	525	3500	1700	54.765	71.425	8.33	16	92	42	-	24	0.11
DC5476A(4C)	525	3500	1700	54.765	71.425	8.33	16	92	42	4	24	0.13
DC5476B(4C)	769	3500	1700	54.765	71.425	8.33	21	92	42	4	24	0.18
DC5476C(4C)	990	3500	1700	54.765	71.425	8.33	25	92	42	4	24	0.2
DC5776A	604	3300	1600	57.760	74.42	8.33	16	98	44	-	26	0.11
DC6334B	806	3000	1500	63.340	80.000	8.33	21	104	50	-	26	0.175
DC7221(5C)	675	2600	1300	72.217	88.877	8.33	14	115	56	5	30	0.14
DC7221B	1279	2600	1300	72.217	88.877	8.33	21	115	56	-	30	0.185
DC7221B(5C)	1279	2600	1300	72.217	88.877	8.33	21	115	56	5	30	0.21
DC7969C(5C)	2038	2400	1200	79.698	96.358	8.33	25	124	61	5	34	0.28
DC8334C	2055	2300	1100	83.340	100.000	8.33	25	132	65	-	34	0.27
DC8729A	1250	2200	1100	87.290	103.96	8.33	16	134	67	-	34	0.165
DC10323A(3C)*	1612	1800	900	103.231**	119.89	8.33	16	155	80	3	40	0.205
DC10323A(3C)*	1612	1800	900	103.231**	119.89	8.33	16	155	80	3	40	0.205
DC12334C*	4800	1500	750	123.34**	140.000	8.33	25	184	96	-	50	0.4
DC12334C*	4800	1500	750	123.34**	140.000	8.33	25	184	96	-	50	0.4
DC12388C(11C)	4875	1500	750	123.881	142.88	9.5	25	196	96	11	44	0.4

NOTES:

1) T_max=2.5 x T_KN

2) Inner race overruns

3) Inner race overruns

**)Extension of tolerance to ± 0,013

4) Other customized dimensions are available.

5) Number of drag strip and clips are customized.

Bearing Steel Sprag One Way Clutches Freewheel Cage Without Inner Or Outer Races

Mounting example

Bearing Steel Sprag One Way Clutches Freewheel Cage Without Inner Or Outer Races
